Feste Induktoren
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM0805-68NK-RCFIXED IND 68NH 500MA 270MOHM SMD |
1,493 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0805 | Active | Drum Core, Wirewound | Alumina | 68 nH | ±10% | 500 mA | - | Unshielded | 270mOhm | 60 @ 500MHz | 1.45GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
PM1008-2R2K-RCFIXED IND 2.2UH 250MA 2.8OHM SMD |
1,998 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM1008 | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 250 mA | - | Unshielded | 2.8Ohm | 25 @ 7.9MHz | 160MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
PM0805-R10K-RCFIXED IND 100NH 400MA 430MOHM SM |
1,692 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0805 | Active | Drum Core, Wirewound | Alumina | 100 nH | ±10% | 400 mA | - | Unshielded | 430mOhm | 60 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
PM0805-6N8M-RCFIXED IND 6.8NH 600MA 60MOHM SMD |
1,500 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0805 | Active | Drum Core, Wirewound | Alumina | 6.8 nH | ±20% | 600 mA | - | Unshielded | 60mOhm | 60 @ 1GHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
PM0805-82NK-RCFIXED IND 82NH 500MA 320MOHM SMD |
1,181 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0805 | Active | Drum Core, Wirewound | Alumina | 82 nH | ±10% | 500 mA | - | Unshielded | 320mOhm | 60 @ 500MHz | 1.35GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
PM0805-56NK-RCFIXED IND 56NH 500MA 250MOHM SMD |
1,073 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM0805 | Active | Drum Core, Wirewound | Alumina | 56 nH | ±10% | 500 mA | - | Unshielded | 250mOhm | 60 @ 500MHz | 1.6GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) |
|
|
PM1008-68NK-RCFIXED IND 68NH 600MA 150MOHM SMD |
1,015 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | PM1008 | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±10% | 600 mA | - | Unshielded | 150mOhm | 60 @ 350MHz | 1.3GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
SRN2512-R24MFIXED IND 240NH 4.7A 24 MOHM SMD |
2,256 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRN2512 | Active | Drum Core, Wirewound | Ferrite | 240 nH | ±20% | 4.7 A | 8A | Semi-Shielded | 24mOhm Max | 7 @ 1MHz | 330MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
SRN2510-R47MFIXED IND 470NH 3.1A 42 MOHM SMD |
1,678 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRN2510 | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.1 A | 3.2A | Semi-Shielded | 42mOhm Max | 8 @ 1MHz | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
SRN2508A-R68MFIXED IND 680NH 1.35A 100MOHM SM |
1,209 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRN2508A | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 1.35 A | 2.05A | Semi-Shielded | 100mOhm | 10 @ 1MHz | 270MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
SRU2013-470YFIXED IND 47UH 250MA 2.86OHM SMD |
1,201 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRU2013 | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 250 mA | 230mA | Shielded | 2.86Ohm Max | 14 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

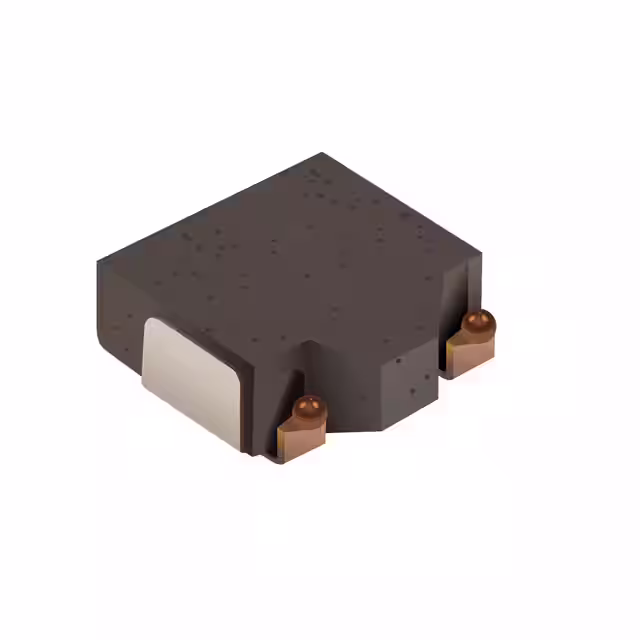

SRP0310-3R3KFIXED IND 3.3UH 2.1A 160MOHM SMD |
4,000 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP0310 | Last Time Buy | - | Metal | 3.3 µH | ±10% | 2.1 A | 2.2A | Shielded | 160mOhm Max | 12 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SRN4012T-150MFIXED IND 15UH 750MA 260MOHM SMD |
4,199 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN4012T | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 750 mA | 650mA | Semi-Shielded | 260mOhm | 10 @ 100kHz | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRN4012T-R47MFIXED IND 470NH 3.2A 25 MOHM SMD |
2,755 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN4012T | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.2 A | 4A | Semi-Shielded | 25mOhm | 6 @ 100kHz | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SRN4012T-220MFIXED IND 22UH 620MA 400MOHM SMD |
2,301 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN4012T | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 620 mA | 500mA | Semi-Shielded | 400mOhm | 10 @ 100kHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SRN2009T-1R5MFIXED IND 1.5UH 1.2A 110MOHM SMD |
1,968 | - |
|
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRN2009T | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.2 A | 1.2A | Semi-Shielded | 110mOhm | 18 @ 1MHz | 170MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) |
|
|
SRN2009T-6R8MFIXED IND 6.8UH 650MA 550MOHM SM |
1,897 | - |
|
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRN2009T | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 650 mA | 650mA | Semi-Shielded | 550mOhm | 15 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) |
|
SRN2010-1R0MFIXED IND 1UH 2.4A 72 MOHM SMD |
1,370 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRN2010 | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.4 A | 2.9A | Semi-Shielded | 72mOhm Max | 11 @ 1MHz | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
CM453232-221KLFIXED IND 220UH 100MA 10 OHM SMD |
1,273 | - |
|
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR),Cut Tape (CT) | CM45 | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 |
|
SRN3012TA-3R3MFIXED IND 3.3UH 1.55A 100MOHM SM |
1,935 | - |
|
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | SRN3012TA | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.55 A | 1.2A | Semi-Shielded | 100mOhm | 15 @ 1MHz | 90MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
