Feste Induktoren
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

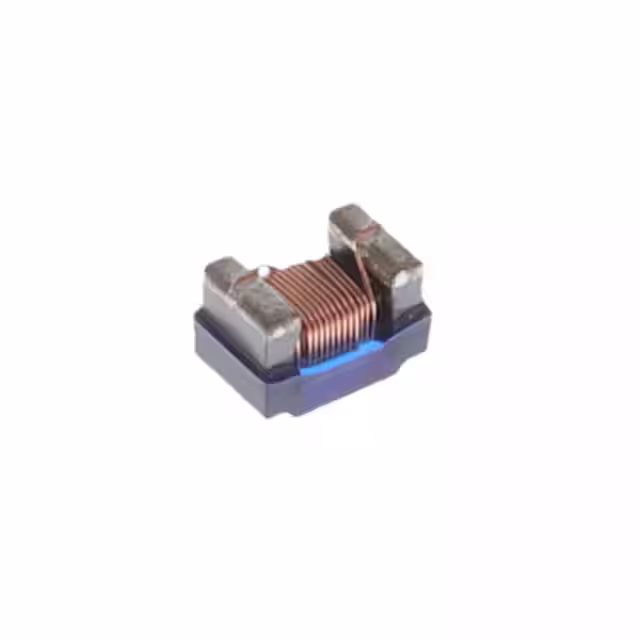

CWF1610-2R2KIND,1.6X1X1MM,2.2UH10%,0.58A,NON |
3,950 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CWF1610 | Active | - | Ferrite | 2.2 µH | ±10% | 580 mA | 600mA | Unshielded | 560mOhm | 16 @ 7.9MHz | 103MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 |
|
CWF1610-100KIND,1.6X1X1MM,10UH10%,0.28A,NON- |
3,862 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CWF1610 | Active | - | Ferrite | 10 µH | ±10% | 280 mA | 280mA | Unshielded | 1.85Ohm | 14 @ 2.5MHz | 36MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 |
|

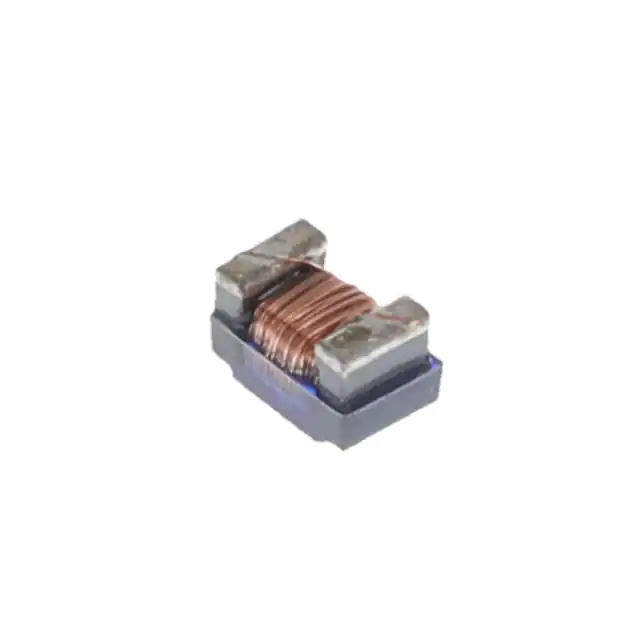

CWF1610-220KIND,1.6X1X1MM,22UH10%,0.2A,NON-S |
3,850 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CWF1610 | Active | - | Ferrite | 22 µH | ±10% | 200 mA | 200mA | Unshielded | 3.61Ohm | 14 @ 2.5MHz | 24MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 |
|

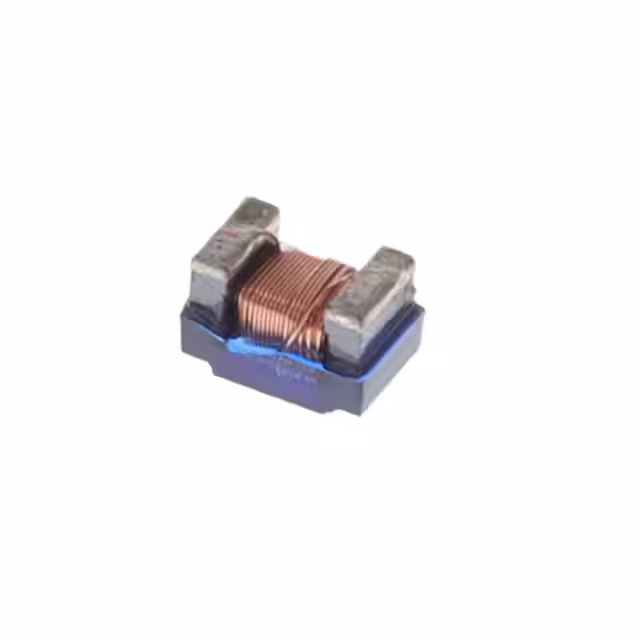

CWF1610-150KIND,1.6X1X1MM,15UH10%,0.24A,NON- |
2,605 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CWF1610 | Active | - | Ferrite | 15 µH | ±10% | 240 mA | 240mA | Unshielded | 2.6Ohm | 14 @ 2.5MHz | 29MHz | - | -40°C ~ 125°C | 2.5 MHz | - | Surface Mount | 0603 |
|
CWF2414-6R8KIND,2.2X1.4X1.3MM,6.8UH10%,0.7A |
1,975 | - |
|
Datasheet |
Surface Mount | Tape & Reel (TR),Cut Tape (CT) | CWF2414 | Active | - | Ferrite | 6.8 µH | ±10% | 700 mA | 420mA | Unshielded | 680mOhm | 14 @ 7.9MHz | 46MHz | - | -40°C ~ 125°C | 7.9 MHz | - | 0805 (2012 Metric) | 0805 |
|
|
CWF2414-2R2KIND,2.2X1.4X1.3MM,2.2UH10%,1.04A |
1,975 | - |
|
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | CWF2414 | Active | - | Ferrite | 2.2 µH | ±10% | 1.04 A | 740mA | Unshielded | 220mOhm | 13 @ 7.9MHz | 87MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 |
|
|
CWF2414-220KIND,2.2X1.4X1.3MM,22UH10%,0.34A |
1,790 | - |
|
Datasheet |
Surface Mount | Tape & Reel (TR),Cut Tape (CT) | CWF2414 | Active | - | Ferrite | 22 µH | ±10% | 340 mA | 240mA | Unshielded | 1.76Ohm | 15 @ 2.5MHz | 20MHz | - | -40°C ~ 125°C | 2.5 MHz | - | 0805 (2012 Metric) | 0805 |
|
|
CWF2414-150KIND,2.2X1.4X1.3MM,15UH10%,0.38A |
1,450 | - |
|
Datasheet |
Surface Mount | Tape & Reel (TR),Cut Tape (CT) | CWF2414 | Active | - | Ferrite | 15 µH | ±10% | 380 mA | 300mA | Unshielded | 1.4Ohm | 15 @ 2.5MHz | 28MHz | - | -40°C ~ 125°C | 2.5 MHz | - | 0805 (2012 Metric) | 0805 |
-,95.jpg)
|
CVH160808-1R0MFIXED IND 1UH 950MA 250MOHM SMD |
2,623 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CVH160808 | Active | Multilayer | Ferrite | 1 µH | ±20% | 950 mA | - | Shielded | 250mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 |
.JPG)
|
CW105550A-6N8JFIXED IND 6.8NH 680MA 104MOHM SM |
9,860 | - |
|
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 6.8 nH | ±5% | 680 mA | - | Unshielded | 104mOhm Max | 20 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
CW105550A-10NJFIXED IND 10NH 480MA 195MOHM SMD |
9,455 | - |
|
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 10 nH | ±5% | 480 mA | - | Unshielded | 195mOhm Max | 23 @ 250MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
CW105550A-2N7DFIXED IND 2.7NH 860MA 120MOHM SM |
8,865 | - |
|
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 2.7 nH | ±0.3nH | 860 mA | - | Unshielded | 120mOhm Max | 16 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
CW105550A-11NJFIXED IND 11NH 640MA 120MOHM SMD |
8,777 | - |
|
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 11 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.68GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
.JPG)
|
CW161009A-3N9JFIXED IND 3.9NH 700MA 70MOHM SMD |
5,022 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW161009A | Active | - | Ceramic | 3.9 nH | ±5% | 700 mA | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
CW105550A-4N3JFIXED IND 4.3NH 700MA 91MOHM SMD |
4,738 | - |
|
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 91mOhm Max | 18 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
CW105550A-8N2JFIXED IND 8.2NH 680MA 200MOHM SM |
3,376 | - |
|
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 8.2 nH | ±5% | 680 mA | - | Unshielded | 200mOhm Max | 25 @ 250MHz | 4.4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
CW161009A-R27JFIXED IND 270NH 200MA 2.1OHM SMD |
2,967 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW161009A | Active | - | Ceramic | 270 nH | ±5% | 200 mA | - | Unshielded | 2.1Ohm Max | 25 @ 100MHz | 822MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 |
|
|
CW161009A-3N3JFIXED IND 3.3NH 700MA 45MOHM SMD |
2,860 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW161009A | Active | - | Ceramic | 3.3 nH | ±5% | 700 mA | - | Unshielded | 45mOhm Max | 35 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
|
|
CW105550A-68NJFIXED IND 68NH 180MA 1.12OHM SMD |
1,995 | - |
|
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW105550A | Active | - | Ceramic | 68 nH | ±5% | 180 mA | - | Unshielded | 1.12Ohm Max | 22 @ 200MHz | 1.62GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 |
|
|
CW161009A-10NJFIXED IND 10NH 700MA 100MOHM SMD |
1,469 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | CW161009A | Active | - | Ceramic | 10 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | 31 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 |
