0Anzeigetafeln, Kontrollleuchten
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | Type | LampColor | LensColor | LensTransparency | Ratings | Voltage | Current | PanelCutoutShape | PanelCutoutDimensions | LensSize | LensStyle | MillicandelaRating | Wavelength-Peak | ViewingAngle | TerminationStyle | IngressProtection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

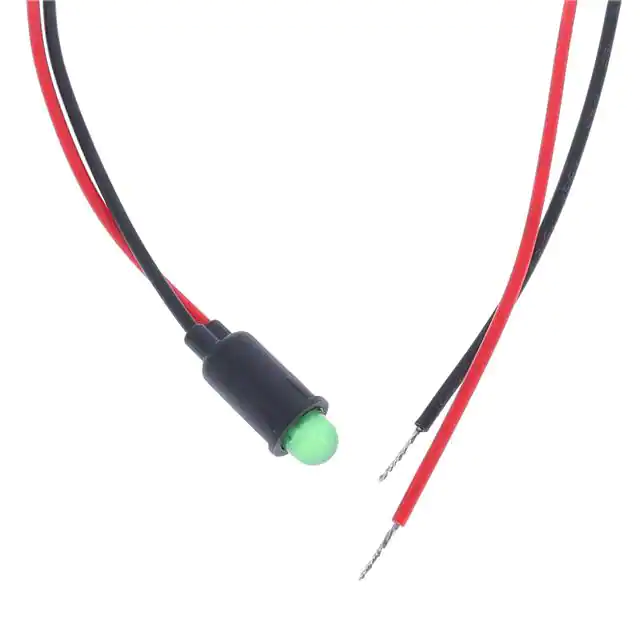

PM5GDW12.0PNL MNT GREEN 20MA W/WIRE 12 |
300 | - |
|
Datasheet |
Bag | PM5 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 568nm | 45° | Wire Leads - 12 (304.80mm) | - |
|
PM5-S17R28VPANEL MOUNT ASSEMBLY RED, 12.7MM |
3,445 | - |
|
Datasheet |
Bag | PM5 | Active | LED | Red | Red | Fresnel | AC/DC | 12V ~ 28V | 20mA | Round | 0.50 (12.70mm) | 10.20mm Dia | Round with Flat Top | 600mcd | 630nm | 120° | Quick Connect - 0.110 (2.8mm) | IP67 |
|
PM5-A5G28VPANEL MOUNT ASSEM 6.35MM GREEN |
2,011 | - |
|
Datasheet |
Bag | PM5 | Active | LED | Green | Green | Fresnel | DC | 24V ~ 28V | 20mA | Round | 0.25 (6.35mm) | 5.10mm Dia | Round with Flat Top | 576mcd | 525nm | 120° | PC Pin | IP67 |
|
PM3-PHDW12.0PNL MNT RED 20MA W/WIRE: 12 |
1,020 | - |
|
Datasheet |
Bag | PM3 | Active | LED | Red | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19 (4.83mm) | 5.90mm Dia | Round with Flat Top | 30mcd | 625nm | 120° | Wire Leads - 12 (304.80mm) | IP67 |
|
PM53-BCINDICATOR LED RED/GREEN PNL MNT |
3,724 | - |
|
Datasheet |
Bag | PM53 | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | - | - |
|
PM5BWDLED ASSY PNL 5MM BLUE DIFF 430NM |
2,445 | - |
|
Datasheet |
Tray | PM5 | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 15mcd | 430nm | 45° | PC Pin | - |
|

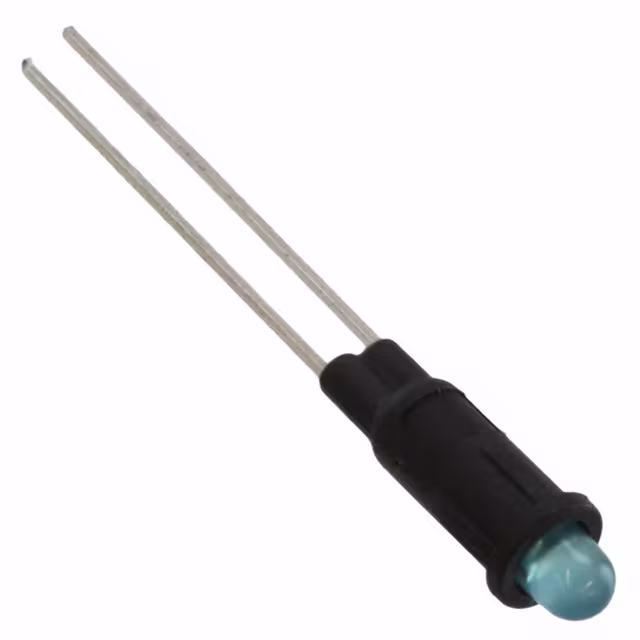

PM3BWDLED ASSY PNL 3MM BLUE DIFF 430NM |
3,487 | - |
|
Datasheet |
Bag | PM3 | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.16 (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 40° | PC Pin | - |
|
MPC3RDPNL MNT W/ WIRE 700NM 2MCD RED |
3,015 | - |
|
Datasheet |
Tray | MPC3 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.24 (6.10mm) | 3mm, T-1 | Round with Domed Top | 2mcd | 700nm | 20° | - | - |
|
MPC3GDLED ASSY PNL 3MM GRN DIFF 565NM |
3,123 | - |
|
Datasheet |
Tray | MPC3 | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 30mA | Round | 0.24 (6.10mm) | 3mm, T-1 | Round with Domed Top | 25mcd | 568nm | 35° | PC Pin | - |
|

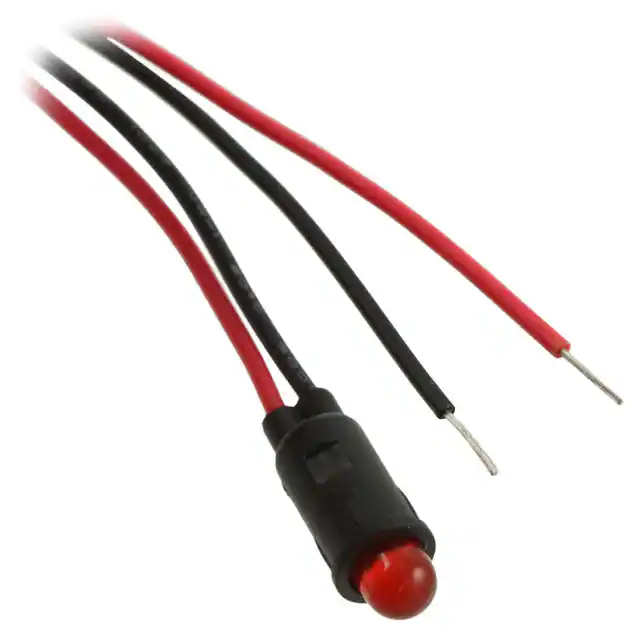

PM5RDW12.0PNL MNT RED 20MA W/WIRE 12 |
2,886 | - |
|
Datasheet |
Bag | PM5 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | Wire Leads - 12 (304.80mm) | - |
|
MPC5RDPNL MNT W/ WIRE 700NM 2MCD RED |
2,270 | - |
|
Datasheet |
Tray | MPC5 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 45° | - | - |
|

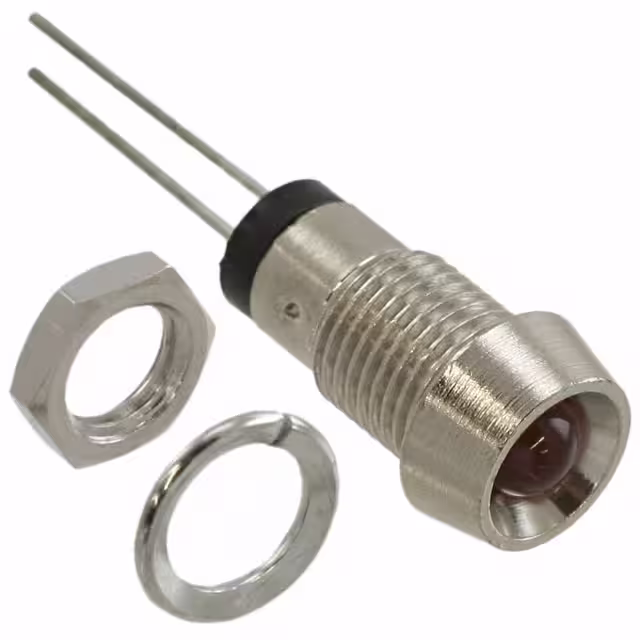

MPR5RDPNL MNT W/ WIRE 700NM 2MCD RED |
3,621 | - |
|
Datasheet |
Tray | MPR5 | Active | LED | Red | Red | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 2mcd | 700nm | 35° | - | - |
|
PM53-YGW12.0INDICATOR LED GREEN/YLW PNL MNT |
2,955 | - |
|
Datasheet |
Bag | PM53 | Active | LED | Green, Yellow | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Yellow | 30mA Green, 30mA Yellow | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 590nm Yellow | 40° | Wire Leads - 12 (304.80mm) | - |
|
PM5R3-BCW12.0INDICATOR LED GREEN/RED PNL MNT |
2,160 | - |
|
Datasheet |
Bag | PM5R3 | Active | LED | Green, Red | White | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 30mA Green, 30mA Red | Round | 0.25 (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | - | 568nm Green, 625nm Red | 40° | Wire Leads - 12 (304.80mm) | - |
|

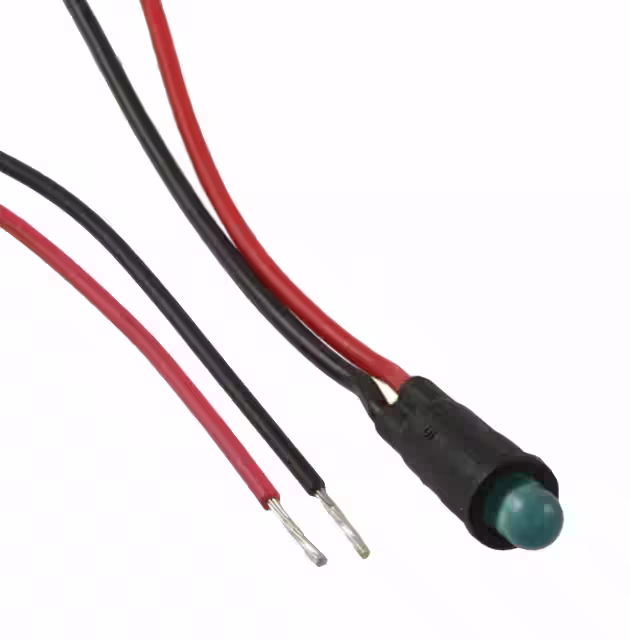

PM3BWDW12.0PNL MNT BLUE 20MA W/WIRE 12 |
3,858 | - |
|
Datasheet |
Bag | PM3 | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.16 (4.06mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 40° | Wire Leads - 12 (304.80mm) | - |
|
MPR3YDW12.0LED PANEL INDICATOR YLW 2V |
3,862 | - |
|
Datasheet |
Bag | MPR3 | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.24 (6.10mm) | 3mm, T-1 | Round with Domed Top | 20mcd | 590nm | 35° | Wire Leads - 12 (304.80mm) | - |
|
MPR3BWDPNL MNT W/ WIRE 430NM 10MCD BLUE |
3,693 | - |
|
Datasheet |
Tray | MPR3 | Active | LED | Blue | Blue | Diffused | Vf (Typ), If (Max) | 4V | 25mA | Round | 0.24 (6.10mm) | 3mm, T-1 | Round with Domed Top | 10mcd | 430nm | 35° | - | - |
|

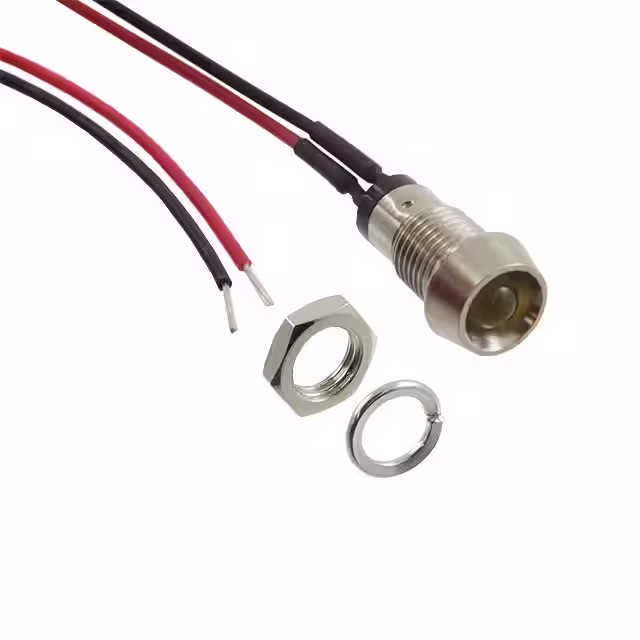

MPR5YDW12.0LED PANEL INDICATOR YLW 2V |
2,637 | - |
|
Datasheet |
Bag | MPR5 | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2V | 30mA | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 25mcd | 590nm | 40° | Wire Leads - 12 (304.80mm) | - |
|
MPR5BCW6.0IND METAL PNL 5MM HER/GN WH DIFF |
2,407 | - |
|
Datasheet |
Bulk | - | Active | LED | Green, Red | - | Diffused | Vf (Typ), If (Max) | 2.1V Green, 2V Red | 20mA Green, 20mA Red | Round | 0.32 (8.13mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd Green, 8mcd Red | 568nm Green, 625nm Red | 45° | Wire Leads - 6 (152.40mm) | - |
|
|
PM3-PADW12.0PNL MNT AMBER 20MA W/WIRE: 12 |
3,051 | - |
|
Datasheet |
Bag | PM3 | Active | LED | Amber | White | Diffused | AC/DC | 8V ~ 48V | 20mA | Round | 0.19 (4.83mm) | 5.90mm Dia | Round with Flat Top | 100mcd | 610nm | 120° | Wire Leads - 12 (304.80mm) | IP67 |
