Feste Induktoren
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1038WA-R68MIND,11X10X3.8MM,0.68UH20%,31A,SH |
500 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038WA | Active | - | Metal | 680 nH | ±20% | 31 A | 28A | Shielded | 2.3mOhm Max | 15 @ 100kHz | 51MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1038WA-2R2MIND,11X10X3.8MM,2.2UH20%,18A,SHD |
500 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038WA | Active | - | Metal | 2.2 µH | ±20% | 18 A | 19A | Shielded | 6.1mOhm Max | 20 @ 100kHz | 26MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
|
SRP1038WA-R47MIND,11X10X3.8MM,0.47UH20%,34A,SH |
498 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1038WA | Active | - | Metal | 470 nH | ±20% | 34 A | 31A | Shielded | 1.63mOhm Max | 15 @ 100kHz | 60MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
SRP1238A-R22MFIXED IND 220NH 38.5A 0.81 MOHM |
680 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1238A | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±20% | 38.5 A | 65A | Shielded | 0.81mOhm Max | 10 @ 100kHz | 125MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
PM127SH-150M-RCFIXED IND 15UH 5.2A 28.5MOHM SMD |
400 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PM127SH | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.2 A | 5A | Shielded | 28.5mOhm Max | 26 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

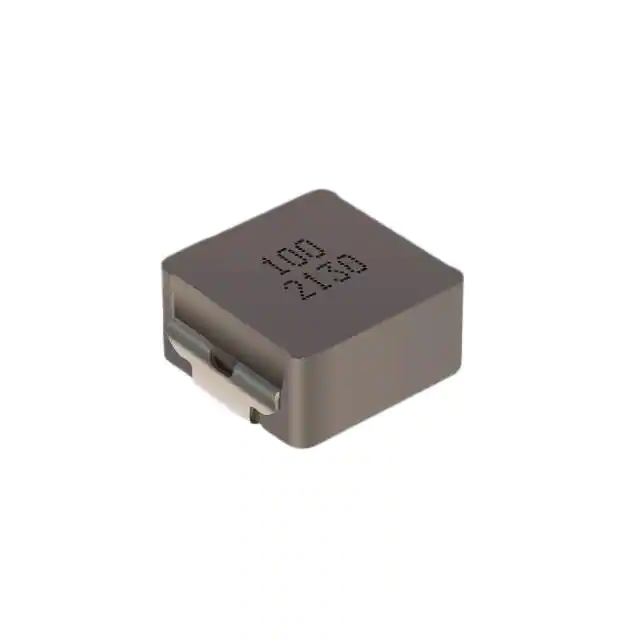

SRP1265WA-100MIND,13.6X12.6X6.2MM,10UH20%,12A |
763 | - |
|
Datasheet |
Surface Mount | Tape & Reel (TR),Cut Tape (CT) | SRP1265WA | Active | - | Metal | 10 µH | ±20% | 12 A | 13.5A | Shielded | 16.5mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Nonstandard | - |
|
|
SRP1265WA-R68MIND,13.6X12.6X6.2MM,0.68UH20%,36 |
500 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1265WA | Active | - | Metal | 680 nH | ±20% | 36.5 A | 36.5A | Shielded | 1.62mOhm Max | 20 @ 100kHz | 48MHz | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - |
|
SDR2207-680KLFIXED IND 68UH 2.4A 112 MOHM SMD |
500 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SDR2207 | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 2.4 A | 4A | Unshielded | 112mOhm Max | 18 @ 2MHz | 7.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SDR2207-2R2MLFIXED IND 2.2UH 13A 7.5 MOHM SMD |
500 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SDR2207 | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 13 A | 20A | Unshielded | 7.5mOhm Max | 35 @ 3MHz | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SDR2207-3R3MLFIXED IND 3.3UH 9A 7.8 MOHM SMD |
471 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SDR2207 | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 9 A | 17A | Unshielded | 7.8mOhm Max | 38 @ 3MHz | 39MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
SDR2207-8R2MLFIXED IND 8.2UH 7A 15.5 MOHM SMD |
284 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SDR2207 | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7 A | 11A | Unshielded | 15.5mOhm Max | 35 @ 3MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
SRP1250-R22MFIXED IND 220NH 45A 1 MOHM SMD |
500 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1250 | Active | Drum Core, Wirewound | Iron | 220 nH | ±20% | 45 A | 80A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
|
SRR1210A-560MFIXED IND 56UH 3.4A 90 MOHM SMD |
445 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRR1210A | Active | - | Ferrite | 56 µH | ±20% | 3.4 A | 2.9A | Shielded | 90mOhm Max | 8 @ 2.52MHz | 4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - |
|
6100-102K-RCFIXED IND 1MH 620MA 1.55 OHM TH |
480 | - |
|
Datasheet |
Radial, Vertical Cylinder | Tray | 6100 | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 620 mA | - | Unshielded | 1.55Ohm Max | 1.6 @ 252kHz | 1.6MHz | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
|
6100-221K-RCFIXED IND 220UH 1.32A 350MOHM TH |
480 | - |
|
Datasheet |
Radial, Vertical Cylinder | Tray | 6100 | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.32 A | - | Unshielded | 350mOhm Max | 3.5 @ 796kHz | 3.5MHz | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
|
6100-472K-RCFIXED IND 4.7MH 290MA 8.23OHM TH |
480 | - |
|
Datasheet |
Radial, Vertical Cylinder | Tray | 6100 | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 290 mA | - | Unshielded | 8.23Ohm Max | 0.8 @ 252kHz | 800kHz | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
|
6100-122K-RCFIXED IND 1.2MH 570MA 2.2 OHM TH |
480 | - |
|
Datasheet |
Radial, Vertical Cylinder | Tray | 6100 | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 570 mA | - | Unshielded | 2.2Ohm Max | 1.4 @ 252kHz | 1.4MHz | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
|
6100-222K-RCFIXED IND 2.2MH 420MA 4.26OHM TH |
220 | - |
|
Datasheet |
Radial, Vertical Cylinder | Tray | 6100 | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 420 mA | - | Unshielded | 4.26Ohm Max | 1.1 @ 252kHz | 1.1MHz | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
RL822-102K-RCFIXED IND 1MH 160MA 2.96 OHM TH |
950 | - |
|
Datasheet |
Radial, Vertical Cylinder | Bulk | RL822 | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 160 mA | - | Unshielded | 2.96Ohm Max | 50 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
PM7232S-1R0M-RCFIXED IND 1UH 11A 10 MOHM SMD |
1,000 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | PM7232S | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 11 A | 15A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - |
