Dioden-Gleichrichter-Single
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SR5200-TPDIODE SCHOTTKY 5A 200V DO-201AD |
1,150 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 400pF @ 4V, 1MHz | - | 500 µA @ 200 V | 200 V | 5A | -65°C ~ 150°C | 950 mV @ 5 A | |
|
SD103A-TPDIODE SCHOTTKY 40V 15A DO35 |
3,765 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | 10 ns | 5 µA @ 30 V | 40 V | 15A (DC) | 125°C (Max) | 600 mV @ 200 mA | |
|
|
SD103B-TPDIODE SCHOTTKY 30V 15A DO35 |
2,144 | - |
|
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | 10 ns | 5 µA @ 20 V | 30 V | 15A (DC) | 125°C (Max) | 600 mV @ 200 mA | ||
|
UF4004-TPDIODE GEN PURP 400V 1A DO41 |
2,736 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 17pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 125°C | 1.3 V @ 1 A | |
|
|
UF4007-TPDIODE GEN PURP 1KV 1A DO41 |
3,519 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 125°C | 1.7 V @ 1 A | |
|
US1JE-TPDIODE GEN PURP 600V 1A SMAE |
2,274 | - |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 17pF @ 4V, 1MHz | 75 ns | 10 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.7 V @ 1 A | |
|
SF24G-TPDIODE GPP SUPER FAST 2A DO-15 |
2,006 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 4V, 1MHz | 35 ns | - | 200 V | 2A | -65°C ~ 150°C | - | |
|
S3D-TPDIODE GEN PURP 200V 3A DO214AB |
2,075 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 10 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 1.2 V @ 3 A | |
|

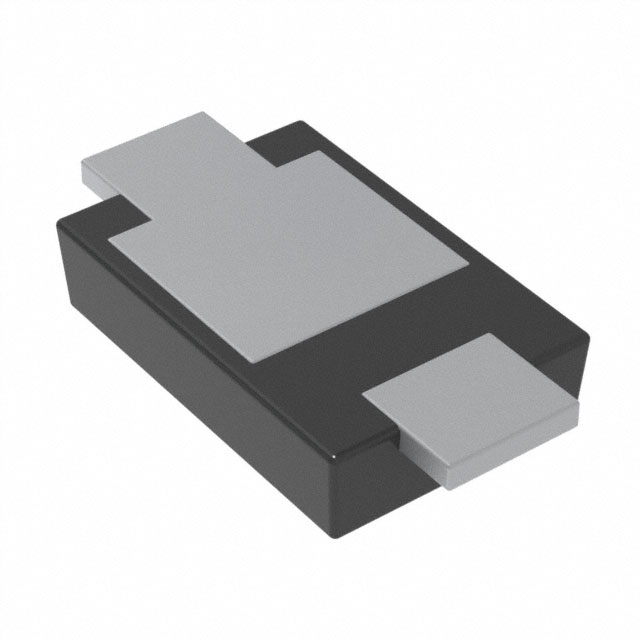

SMD36LHE1-TP3A,60V,SCHOTTKY,SOD-123HE1 PACKA |
1,725 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Last Time Buy | Surface Mount | - | - | 150 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | 480 mV @ 3 A | |
|
B0530WS-TPDIODE SCHOTTKY 30V 500MA SOD323 |
16,527 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 300 µA @ 30 V | 30 V | 500mA | -55°C ~ 125°C | 550 mV @ 500 mA | |
|
UG2DAFL-TPDIODE GEN PURP 200V 2A DO221AC |
20,000 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 25 ns | 2 µA @ 200 V | 200 V | 2A | -55°C ~ 175°C | 930 mV @ 2 A | |
|
|
MBR8U45-TPDIODE SCHOTTKY 45V 8A TO277 |
7,853 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 45 V | 45 V | 8A | -55°C ~ 150°C | 470 mV @ 8 A | |
|
SK345AFL-TP-HF3A,45V,SCHOTTKY,DO-221AC PACKAGE |
8,790 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 180pF @ 4V, 1MHz | - | 500 µA @ 45 V | 45 V | 3A | -50°C ~ 125°C | 500 mV @ 3 A | |
|
|
SL34AFL-TP3A,40V,SCHOTTKY,DO-221AC PACKAGE |
7,170 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 150°C | 450 mV @ 3 A | |
|
S2M-LTPDIODE GEN PURP 1KV 2A DO214AA |
5,265 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1.15 V @ 2 A | |
|
|
S3MB-TPDIODE GEN PURP 1KV 3A DO214AA |
5,000 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 10 µA @ 1000 V | 1000 V | 3A | - | 1.15 V @ 3 A | |
|
MBR10150ULPS-TP10A,150V,SCHOTTKY,TO-277B PACKAG |
3,516 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 20 µA @ 150 V | 150 V | 10A | -65°C ~ 150°C | 840 mV @ 10 A | |
|
|
S3JB-TPDIODE GEN PURP 600V 3A DO214AA |
2,807 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | - | 10 µA @ 600 V | 600 V | 3A | - | 1.15 V @ 3 A | |
|
|
ER3JB-TPDIODE GEN PURP 600V 3A DO214AA |
2,319 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 3A | -50°C ~ 150°C | 1.7 V @ 3 A | |
|
|
MBR12100LPS-TPDIODE SCHOTTKY 100V 12A TO277B |
1,139 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 250 µA @ 100 V | 100 V | 12A | -55°C ~ 150°C | 800 mV @ 12 A |
