Automobilrelais
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

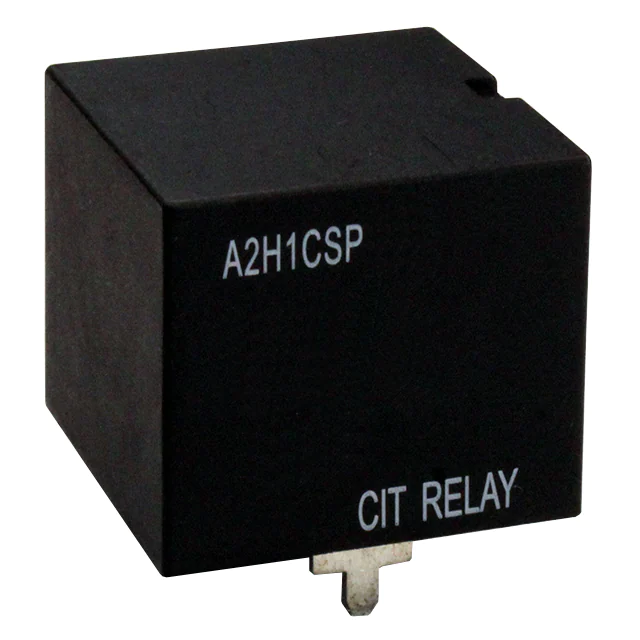

A2H1CSP24VDC1.6RELAY PCB SPDT SEALED 50A 24VDC |
100 | - |
|
Datasheet |
Tray | A2H | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin |
|
A2H1CSP24VDC1.6RRELAY PCB SPDT SEALED 50A 24VDC |
100 | - |
|
Datasheet |
Tray | A2H | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Through Hole | PC Pin |
|
A2H1CSP24VDC1.6DRELAY PCB SPDT SEALED 50A 24VDC |
100 | - |
|
Datasheet |
Tray | A2H | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Through Hole | PC Pin |
|

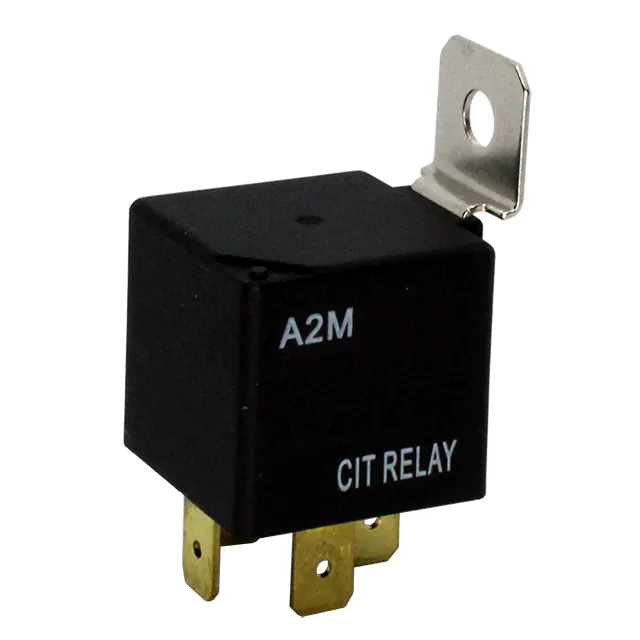

A2M1ASQ48VDC1.6RELAY AUTOMOTIVE METAL BRACKET S |
3,406 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2M1ASQ48VDC1.6RRELAY AUTOMOTIVE METAL BRACKET S |
3,840 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2M1ASQ48VDC1.6DRELAY AUTOMOTIVE METAL BRACKET S |
2,722 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A31UCQ24VDC180AMP RELAY AUTOMOTIVE SPST NO 1 |
100 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A21CSQ6VDC1.6RELAY AUTOMOTIVE SPDT 1C 6VDC 1. |
2,878 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A31CCQ12VDC180AMP RELAY AUTOMOTIVE SPDT 1C 1 |
2,390 | - |
|
Datasheet |
Tray | A3 | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

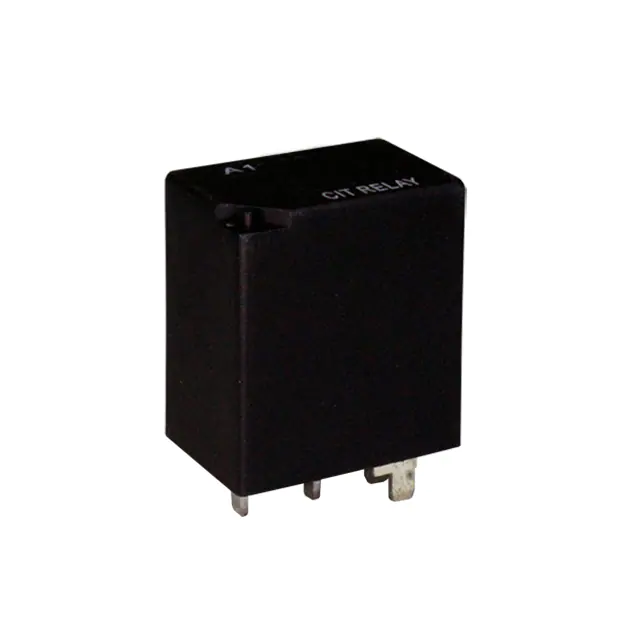

A11ASQ48VDC1.2RELAY AUTOMOTIVE 30A SPST NO 1A |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
A11ASP48VDC1.2RELAY AUTOMOTIVE 30A SPST NO 1A |
498 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
A21CSQ6VDC1.6RRELAY AUTOMOTIVE SPDT 1C 6VDC 1. |
3,669 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A2M1CSQ6VDC1.6RELAY AUTOMOTIVE METAL BRACKET S |
100 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2M1CSQ48VDC1.6RELAY AUTOMOTIVE METAL BRACKET S |
100 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A21CSQ6VDC1.6DRELAY AUTOMOTIVE SPDT 1C 6VDC 1. |
3,304 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A11ASP48VDC1.2RRELAY AUTOMOTIVE 30A SPST NO 1A |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin |
|
|
A11ASQ48VDC1.2RRELAY AUTOMOTIVE 30A SPST NO 1A |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
|
A11ASP48VDC1.2DRELAY AUTOMOTIVE 30A SPST NO 1A |
500 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin |
|
|
A11ASQ48VDC1.2DRELAY AUTOMOTIVE 30A SPST NO 1A |
460 | - |
|
Datasheet |
Tube | A1 | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes |
|
|
A2M1CSQ48VDC1.6RRELAY AUTOMOTIVE METAL BRACKET S |
100 | - |
|
Datasheet |
Tray | A2 | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
