Elektrolytkondensatoren aus Aluminium
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CGS242U100R4CCAP ALUM 2400UF 100V SCREW |
2,335 | - |
|
Datasheet |
Bulk | CGS | Active | 2400 µF | -10%, +75% | 100 V | 50mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 120 Hz | 6.5 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
PSU8830BCAP ALUM 88UF 330V QC TERM |
3,264 | - |
|
Datasheet |
Bulk | PSU | Active | 88 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 3.375 (85.73mm) | - | Chassis Mount |
|
|
PSU8830ACAP ALUM 88UF 330V QC TERM |
2,432 | - |
|
Datasheet |
Bulk | PSU | Active | 88 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 1.813 Dia (46.05mm) | 4.375 (111.13mm) | - | Chassis Mount |
|
DCMX122U400AF2ACAP ALUM 1200UF 400V SCREW |
200 | - |
|
Datasheet |
Bulk | DCMX | Active | 1200 µF | -10%, +75% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
CGS233U040V4CCAP ALUM 23000UF 40V SCREW |
3,054 | - |
|
Datasheet |
Bulk | CGS | Active | 23000 µF | -10%, +75% | 40 V | 20mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.9 A @ 120 Hz | 12.87 A @ 10 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
DCMC154U050DC2BCAP ALUM 150000UF 50V SCREW |
2,572 | - |
|
Datasheet |
Bulk | DCMC | Active | 150000 µF | -10%, +75% | 50 V | 6.9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.2 A @ 120 Hz | 25.41 A @ 10 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 4.187 (106.35mm) | - | Chassis Mount |
|
CG113U035U4CCAP ALUM 11000UF 35V SCREW |
2,252 | - |
|
Datasheet |
Bulk | CG | Active | 11000 µF | -10%, +75% | 35 V | 20mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.1 A @ 120 Hz | 10.465 A @ 10 kHz | - | - | 1.750 Dia (44.45mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS112U150R4CCAP ALUM 1100UF 150V SCREW |
3,336 | - |
|
Datasheet |
Bulk | CGS | Active | 1100 µF | -10%, +75% | 150 V | 64mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.4 A @ 120 Hz | 5.72 A @ 10 kHz | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS402U100V4CCAP ALUM 4000UF 100V SCREW |
3,138 | - |
|
Datasheet |
Bulk | CGS | Active | 4000 µF | -10%, +75% | 100 V | 36mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 9.49 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS551T250R4CCAP ALUM 550UF 250V SCREW |
3,452 | - |
|
Datasheet |
Bulk | CGS | Active | 550 µF | -10%, +50% | 250 V | 98mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.6 A @ 120 Hz | 5.4 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS663U016V4CCAP ALUM 66000UF 16V SCREW |
2,411 | - |
|
Datasheet |
Bulk | CGS | Active | 66000 µF | -10%, +75% | 16 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.8 A @ 120 Hz | 14.04 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS632U075R5LCAP ALUM 6300UF 75V SCREW |
3,096 | - |
|
Datasheet |
Bulk | CGS | Active | 6300 µF | -10%, +75% | 75 V | 17mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 12.74 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
PSU21630CAP ALUM 216UF 330V QC TERM |
2,496 | - |
|
Datasheet |
Bulk | PSU | Active | 216 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.563 Dia (65.10mm) | 4.435 (112.65mm) | - | Chassis Mount |
|
CG252U150W4CCAP ALUM 2500UF 150V SCREW |
2,306 | - |
|
Datasheet |
Bulk | CG | Active | 2500 µF | -10%, +75% | 150 V | 30mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.2 A @ 120 Hz | 11.132 A @ 10 kHz | - | - | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
|

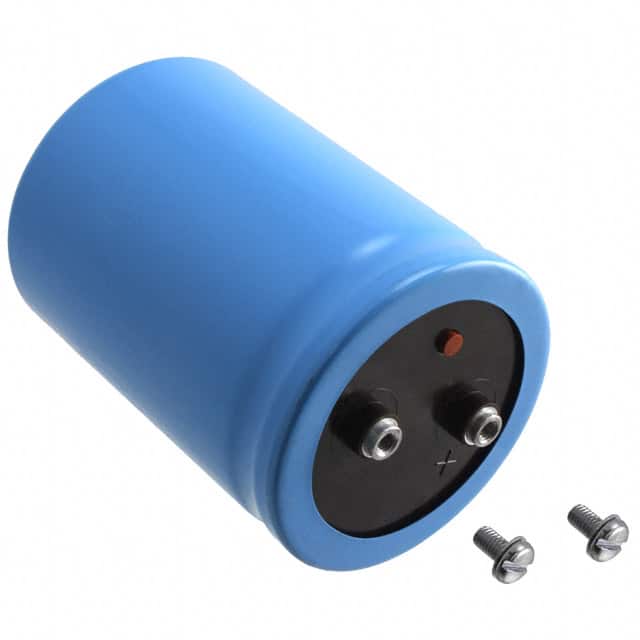

DCMC392M500DF2FSCAP ALUM 3900UF 20% 500V SCREW |
2,341 | - |
|
Datasheet |
Bulk | DCMC | Active | 3900 µF | ±20% | 500 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
CGH292T250V3LCAP ALUM 2900UF 250V SCREW |
2,890 | - |
|
Datasheet |
Bulk | CGH | Active | 2900 µF | -10%, +50% | 250 V | 53.1mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.7 A @ 120 Hz | 7.011 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
CGS102T350V4CCAP ALUM 1000UF 350V SCREW |
2,473 | - |
|
Datasheet |
Bulk | CGS | Active | 1000 µF | -10%, +50% | 350 V | 140mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.7 A @ 120 Hz | 5.55 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|

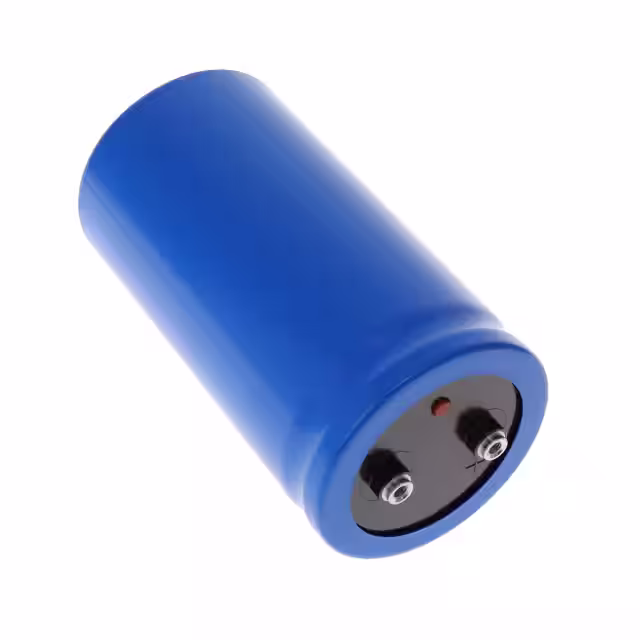

DCMC104M100DF2BCAP ALUM 100000UF 20% 100V SCREW |
2,406 | - |
|
Datasheet |
Bulk | DCMC | Active | 100000 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
DCMC332M450CE5FCAP ALUM 3300UF 20% 450V SCREW |
2,487 | - |
|
Datasheet |
Bulk | DCMC | Active | 3300 µF | ±20% | 450 V | 40mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 5.125 (130.18mm) | - | Chassis Mount |
|
|
PSU37830CAP ALUM 378UF 330V QC TERM |
2,608 | - |
|
Datasheet |
Bulk | PSU | Active | 378 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.563 Dia (65.10mm) | 4.375 (111.13mm) | - | Chassis Mount |
