Elektrolytkondensatoren aus Aluminium
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVS477M16G24B-FCAP ALUM 470UF 20% 16V SMD |
3,996 | - |
|
Datasheet |
Bulk | AVS | Discontinued at Mosen | 470 µF | ±20% | 16 V | 700mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 420 mA @ 120 Hz | 714 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
AVS477M25G24B-FCAP ALUM 470UF 20% 25V SMD |
2,639 | - |
|
Datasheet |
Bulk | AVS | Discontinued at Mosen | 470 µF | ±20% | 25 V | 600mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 360 mA @ 120 Hz | 612 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

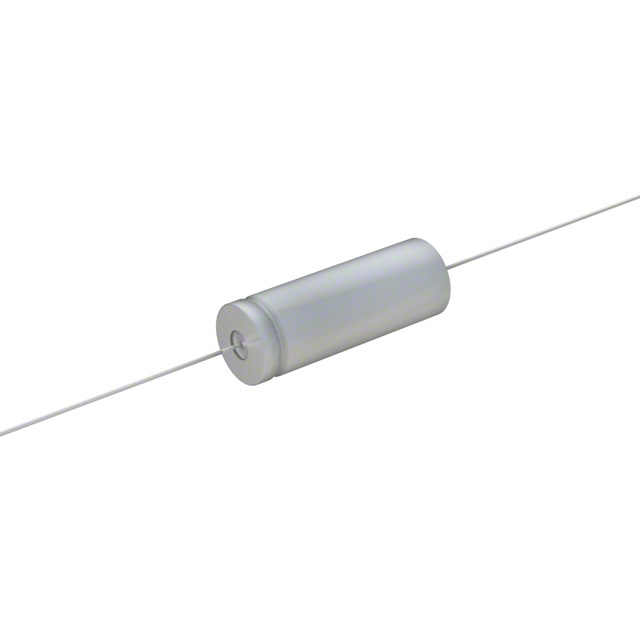

556152M050FR2CAP ALUM 1500UF 20% 50V AXIAL |
2,435 | - |
|
Bulk | 556 | Obsolete | 1500 µF | ±20% | 50 V | 180mOhm | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 120 Hz | 1.92 A @ 10 kHz | - | - | 0.630 Dia x 1.752 L (16.00mm x 44.50mm) | - | - | Through Hole | |
|

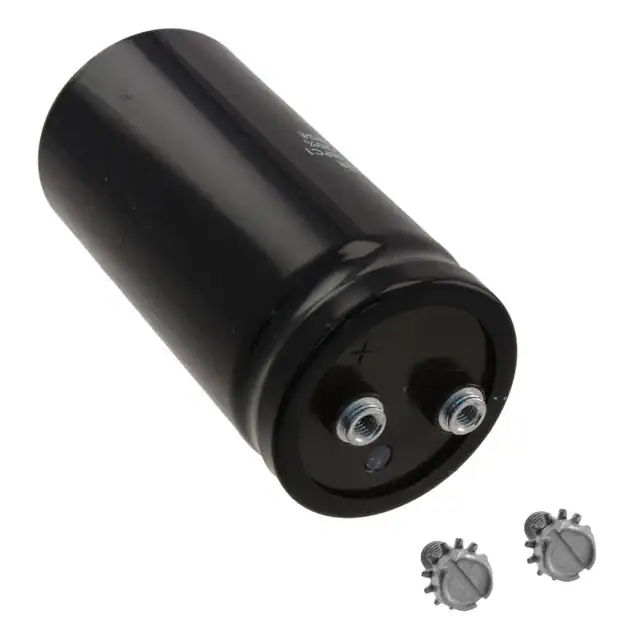

3186EE222M400MPC1CAP ALUM 2200UF 20% 400V SCREW |
3,441 | - |
|
Datasheet |
Bulk,Bulk | 3186 | Active | 2200 µF | ±20% | 400 V | - | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|

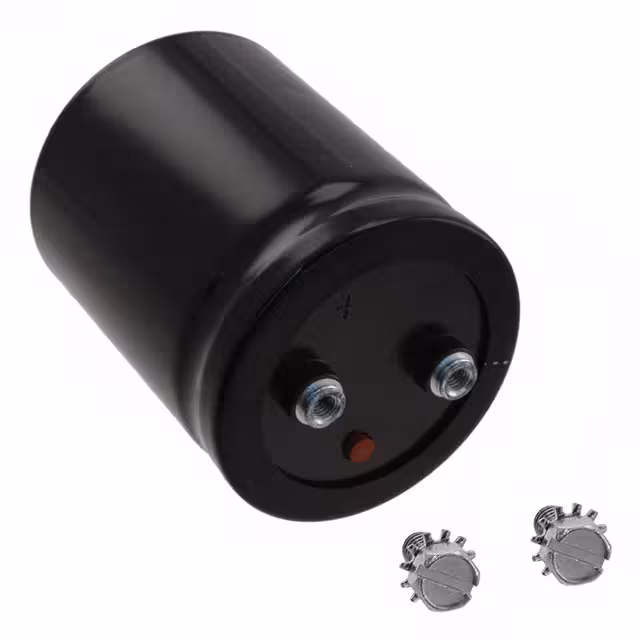

3186FC222M400MPC1CAP ALUM 2200UF 20% 400V SCREW |
3,555 | - |
|
Datasheet |
Bulk | 3186 | Active | 2200 µF | ±20% | 400 V | - | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
3186EF222M400MPC1CAP ALUM 2200UF 20% 400V SCREW |
2,013 | - |
|
Datasheet |
Bulk | 3186 | Active | 2200 µF | ±20% | 400 V | 50mOhm | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
|
3186FE332M400MPC1CAP ALUM 3300UF 20% 400V SCREW |
3,401 | - |
|
Datasheet |
Bulk | 3186 | Active | 3300 µF | ±20% | 400 V | - | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
3186GD332M400MPC1CAP ALUM 3300UF 20% 400V SCREW |
3,078 | - |
|
Datasheet |
Bulk,Bulk | 3186 | Active | 3300 µF | ±20% | 400 V | - | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
3186FF332M400MPC1CAP ALUM 3300UF 20% 400V SCREW |
2,967 | - |
|
Datasheet |
Bulk | 3186 | Active | 3300 µF | ±20% | 400 V | 39mOhm | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
|
3186GE472M400MPC1CAP ALUM 4700UF 20% 400V SCREW |
2,633 | - |
|
Datasheet |
Bulk | 3186 | Active | 4700 µF | ±20% | 400 V | - | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
3186GF472M400MPC1CAP ALUM 4700UF 20% 400V SCREW |
2,262 | - |
|
Datasheet |
Bulk | 3186 | Active | 4700 µF | ±20% | 400 V | 34mOhm | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
|
3186GH682M400MPC1CAP ALUM 6800UF 20% 400V SCREW |
3,411 | - |
|
Datasheet |
Bulk | 3186 | Active | 6800 µF | ±20% | 400 V | - | 1500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
382LX821M450A082CAP ALUM 820UF 20% 450V SNAP |
3,277 | - |
|
Datasheet |
Bulk | 382LX | Active | 820 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378 Dia (35.00mm) | 3.228 (82.00mm) | - | Through Hole |
|
AVES106M35C12T-FCAP ALUM 10UF 20% 35V SMD |
3,397 | - |
|
Datasheet |
Tape & Reel (TR) | AVES | Active | 10 µF | ±20% | 35 V | 21.6Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 23 mA @ 120 Hz | 32.2 mA @ 10 kHz | - | - | 0.197 Dia (5.00mm) | 0.209 (5.30mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
-Series_-338_-4x5.3_-B.jpg)
|
AVES335M50B12T-FCAP ALUM 3.3UF 20% 50V SMD |
3,974 | - |
|
Datasheet |
Tape & Reel (TR) | AVES | Active | 3.3 µF | ±20% | 50 V | 60.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 12 mA @ 120 Hz | 18 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.209 (5.30mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
AVEZ336M50X16T-FCAP ALUM 33UF 20% 50V SMD |
3,680 | - |
|
Datasheet |
Tape & Reel (TR) | AVEZ | Active | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 136 mA @ 120 Hz | 170 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
AVEZ476M35X16T-FCAP ALUM 47UF 20% 35V SMD |
2,479 | - |
|
Datasheet |
Tape & Reel (TR) | AVEZ | Active | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 204 mA @ 120 Hz | 255 mA @ 100 kHz | 500 mOhms | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
AVE104M50B12T-FCAP ALUM 0.1UF 20% 50V SMD |
3,354 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AVE | Obsolete | 0.1 µF | ±20% | 50 V | 1.66kOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 mA @ 120 Hz | 4.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.209 (5.30mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
AVE224M50B12T-FCAP ALUM 0.22UF 20% 50V SMD |
3,332 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AVE | Obsolete | 0.22 µF | ±20% | 50 V | 753.56Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 mA @ 120 Hz | 7.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.209 (5.30mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
AVE474M50B12T-FCAP ALUM 0.47UF 20% 50V SMD |
2,598 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | AVE | Obsolete | 0.47 µF | ±20% | 50 V | 352.73Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7 mA @ 120 Hz | 10.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.209 (5.30mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
