Elektrolytkondensatoren aus Aluminium
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
520C891M500AF2BCAP ALUM 890UF 20% 500V |
3,489 | - |
|
Datasheet |
Bag | 520C | Active | 890 µF | ±20% | 500 V | - | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | - |
|
DCMC822T350DF2ESCAP ALUM 8200UF 350V SCREW |
2,222 | - |
|
Datasheet |
Bulk | DCMC | Active | 8200 µF | -10%, +50% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
CGS202T300U4CCAP ALUM 2000UF 300V SCREW |
3,606 | - |
|
Datasheet |
Bulk | CGS | Active | 2000 µF | -10%, +50% | 300 V | 53mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 8.25 A @ 10 kHz | - | - | 1.750 Dia (44.45mm) | 4.125 (104.78mm) | - | Chassis Mount |
|

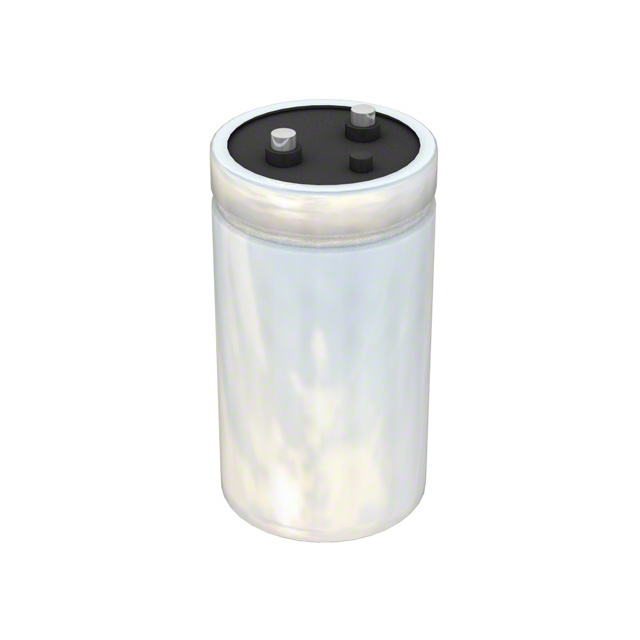

HES401G450V3LCAP ALUM 400UF 450V SCREW |
3,723 | - |
|
Datasheet |
Bulk | HES | Active | 400 µF | 0%, +50% | 450 V | 203mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.567 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
DCMC562T450DF2BPCAP ALUM 5600UF 450V SCREW |
3,800 | - |
|
Datasheet |
Bulk | DCMC | Active | 5600 µF | -10%, +50% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
CGS174U016V4CCAP ALUM 170000UF 16V SCREW |
2,211 | - |
|
Datasheet |
Bulk | CGS | Active | 170000 µF | -10%, +75% | 16 V | 4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23.5 A @ 120 Hz | 30.55 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
CGS154U016X4CCAP ALUM 150000UF 16V SCREW |
3,297 | - |
|
Datasheet |
Bulk | CGS | Active | 150000 µF | -10%, +75% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Chassis Mount |
|
PSU13030CAP ALUM 130UF 330V QC TERM |
2,799 | - |
|
Datasheet |
Bulk | PSU | Active | 130 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.063 Dia (52.40mm) | 4.375 (111.13mm) | - | Chassis Mount |
|
|
CGS621T500U3LCAP ALUM 620UF 500V SCREW |
2,595 | - |
|
Datasheet |
Bulk | CGS | Active | 620 µF | -10%, +50% | 500 V | 164mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.8 A @ 10 kHz | - | - | 1.750 Dia (44.45mm) | 3.625 (92.08mm) | - | Chassis Mount |
|
|
DCMC244U050DP2DCAP ALUM 240000UF 50V SCREW |
2,494 | - |
|
Datasheet |
Bulk | DCMC | Active | 240000 µF | -10%, +75% | 50 V | 5.4mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30.2 A @ 120 Hz | 31.71 A @ 10 kHz | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.937 (150.80mm) | - | Chassis Mount |
|
|
DCMC784U025DG2DSCAP ALUM 780000UF 25V SCREW |
3,103 | - |
|
Datasheet |
Bulk | DCMC | Active | 780000 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 8.687 (220.65mm) | - | Chassis Mount |
|
|
DCM363U075DF2BCAP ALUM 36000UF 75V SCREW |
2,424 | - |
|
Datasheet |
Bulk | DCM | Active | 36000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
|
DCM363U075DF2ECAP ALUM 36000UF 75V SCREW |
2,654 | - |
|
Datasheet |
Bulk | DCM | Active | 36000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|
|
CGS412T250V4LCAP ALUM 4100UF 250V SCREW |
3,999 | - |
|
Datasheet |
Bulk | CGS | Active | 4100 µF | -10%, +50% | 250 V | 29mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.5 A @ 120 Hz | 12.75 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.625 (117.48mm) | - | Chassis Mount |
|
|
DCM953U040CC2BCAP ALUM 95000UF 40V SCREW |
2,062 | - |
|
Datasheet |
Bulk | DCM | Active | 95000 µF | -10%, +75% | 40 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.187 (106.35mm) | - | Chassis Mount |
|
|
DCM373U075DE2BCAP ALUM 37000UF 75V SCREW |
3,980 | - |
|
Datasheet |
Bulk | DCM | Active | 37000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.187 (131.75mm) | - | Chassis Mount |
|
|
CGS533U050V4CCAP ALUM 53000UF 50V SCREW |
2,368 | - |
|
Datasheet |
Bulk | CGS | Active | 53000 µF | -10%, +75% | 50 V | 11mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.3 A @ 120 Hz | 17.29 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
CG113U075X4CCAP ALUM 11000UF 75V SCREW |
3,631 | - |
|
Datasheet |
Bulk,Bulk | CG | Active | 11000 µF | -10%, +75% | 75 V | 9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18.8 A @ 120 Hz | 21.62 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS132T400U4CCAP ALUM 1300UF 400V SCREW |
2,917 | - |
|
Datasheet |
Bulk | CGS | Active | 1300 µF | -10%, +50% | 400 V | 73mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 120 Hz | 7.05 A @ 10 kHz | - | - | 1.750 Dia (44.45mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
500C981T450AF2BCAP ALUM 980UF 450V SCREW |
3,823 | - |
|
Datasheet |
Bulk,Bulk | 500C | Active | 980 µF | -10%, +50% | 450 V | 114mOhm @ 120Hz | 5000 Hrs @ 85°C | -40°C ~ 95°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | - | - | 0.500 (12.70mm) | 1.375 Dia (34.93mm) | 5.687 (144.45mm) | - | Chassis Mount |
