Elektrolytkondensatoren aus Aluminium
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLW5-50CAP ALUM 5UF 50V AXIAL |
3,500 | - |
|
Datasheet |
Bulk | NLW | Active | 5 µF | -10%, +75% | 50 V | 40Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 138 mA @ 120 Hz | 158.7 mA @ 10 kHz | - | - | 0.280 Dia x 0.570 L (7.11mm x 14.49mm) | - | - | Through Hole |
|
381LQ561M420A452CAP ALUM 560UF 20% 420V SNAP |
2,191 | - |
|
Datasheet |
Bulk | 381LQ | Active | 560 µF | ±20% | 420 V | 330mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.65 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
SLP222M180H9P3CAP ALUM 2200UF 20% 180V SNAP |
2,072 | - |
|
Datasheet |
Bulk | SLP0712TE (750W) | Active | 2200 µF | ±20% | 180 V | 90mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
380LX272M200A062CAP ALUM 2700UF 20% 200V SNAP |
2,083 | - |
|
Datasheet |
Bulk | 380LX | Active | 2700 µF | ±20% | 200 V | 80mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 7.7 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.559 (65.00mm) | - | Through Hole |
|
381LX221M450A042CAP ALUM 220UF 20% 450V SNAP |
3,196 | - |
|
Datasheet |
Bulk,Bulk | 381LX | Active | 220 µF | ±20% | 450 V | 1.206Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.3 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
380LX182M250A062CAP ALUM 1800UF 20% 250V SNAP |
2,665 | - |
|
Datasheet |
Bulk | 380LX | Active | 1800 µF | ±20% | 250 V | 110mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.5 A @ 120 Hz | 6.3 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.559 (65.00mm) | - | Through Hole |
|
381LR331M420A032CAP ALUM 330UF 20% 420V SNAP |
3,726 | - |
|
Datasheet |
Bulk | 381LR | Active | 330 µF | ±20% | 420 V | 402mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.54 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
381LX471M315A032CAP ALUM 470UF 20% 315V SNAP |
3,344 | - |
|
Datasheet |
Bulk | 381LX | Active | 470 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
381LQ561M315J052CAP ALUM 560UF 20% 315V SNAP |
3,228 | - |
|
Datasheet |
Bulk | 381LQ | Active | 560 µF | ±20% | 315 V | 360mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
SLPX681M385H9P3CAP ALUM 680UF 20% 385V SNAP |
2,794 | - |
|
Datasheet |
Bulk | SLPX | Active | 680 µF | ±20% | 385 V | 293mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.12 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

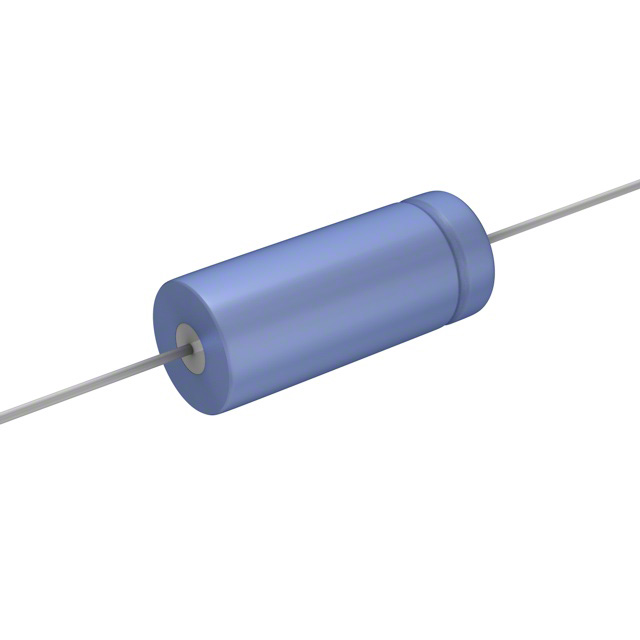

NLW50-16CAP ALUM 50UF 16V AXIAL |
2,624 | - |
|
Datasheet |
Bulk | NLW | Active | 50 µF | -10%, +75% | 16 V | 6.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 108 mA @ 120 Hz | 124.2 mA @ 10 kHz | - | - | 0.320 Dia x 0.760 L (8.13mm x 19.30mm) | - | - | Through Hole |
|
SLP391M400H5P3CAP ALUM 390UF 20% 400V SNAP |
3,980 | - |
|
Datasheet |
Bulk | SLP0712TE (750W) | Active | 390 µF | ±20% | 400 V | 851mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
SLP821M315H4P3CAP ALUM 820UF 20% 315V SNAP |
2,991 | - |
|
Datasheet |
Bulk | SLP0712TE (750W) | Active | 820 µF | ±20% | 315 V | 405mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.23 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
WBR5-150ACAP ALUM 5UF 150V AXIAL |
2,086 | - |
|
Datasheet |
Bulk | WBR | Active | 5 µF | -10%, +100% | 150 V | 62Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 24 mA @ 100 kHz | - | - | 0.340 Dia x 0.880 L (8.64mm x 22.35mm) | - | - | Through Hole |
|
WBR50-25ACAP ALUM 50UF 25V AXIAL |
2,030 | - |
|
Datasheet |
Bulk | WBR | Active | 50 µF | -10%, +150% | 25 V | 9.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 44 mA @ 120 Hz | 50.6 mA @ 100 kHz | - | - | 0.340 Dia x 0.760 L (8.64mm x 19.30mm) | - | - | Through Hole |
|
|
SLPX561M400H9P3CAP ALUM 560UF 20% 400V SNAP |
3,469 | - |
|
Datasheet |
Bulk | SLPX | Active | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
SLPX561M420H4P3CAP ALUM 560UF 20% 420V SNAP |
2,309 | - |
|
Datasheet |
Bulk | SLPX | Active | 560 µF | ±20% | 420 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.95 A @ 120 Hz | 4.34 A @ 20 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.850 (47.00mm) | - | Through Hole |
|

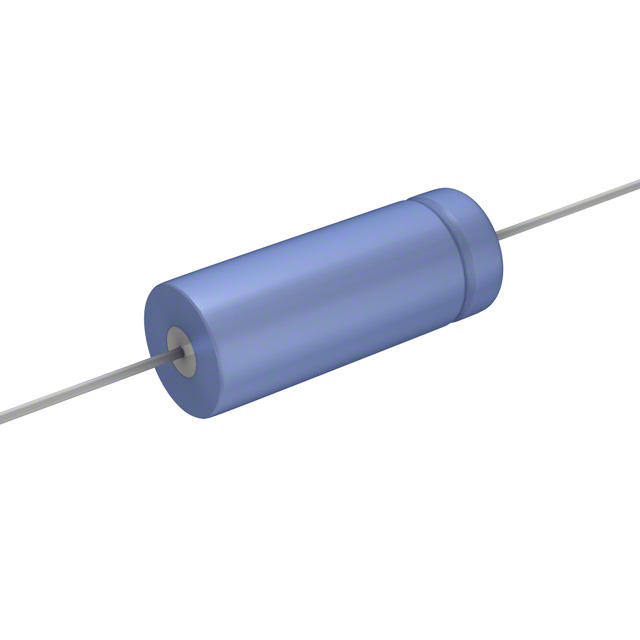

NLW100-12CAP ALUM 100UF 12V AXIAL |
3,259 | - |
|
Datasheet |
Bulk | NLW | Active | 100 µF | -10%, +75% | 12 V | 3.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 172.5 mA @ 10 kHz | - | - | 0.320 Dia x 0.810 L (8.13mm x 20.57mm) | - | - | Through Hole |
|
|
WBR25-50ACAP ALUM 25UF 50V AXIAL |
3,383 | - |
|
Datasheet |
Bulk | WBR | Active | 25 µF | -10%, +150% | 50 V | 15.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 40.25 mA @ 100 kHz | - | - | 0.340 Dia x 0.760 L (8.64mm x 19.30mm) | - | - | Through Hole |
|
|
WBR4-150ACAP ALUM 4UF 150V AXIAL |
3,137 | - |
|
Datasheet |
Bulk | WBR | Active | 4 µF | -10%, +100% | 150 V | 78Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 21.6 mA @ 100 kHz | - | - | 0.340 Dia x 0.880 L (8.64mm x 22.35mm) | - | - | Through Hole |
