AC DC Desktop, Wandadapter
| Foto | Herst. Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Packaging | Series | ProductStatus | RegionUtilized | Form | InputType | Voltage-Input | Voltage-Output | Current-Output(Max) | Power(Watts) | NoLoadPowerConsumption | Polarization | Applications | Efficiency | OperatingTemperature | OutputConnector | CordLength | InputConnector | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GEM60I18-P1JAC/DC WALL MOUNT ADAPTER 18V 60W |
118 | - |
|
Datasheet |
Box | GEM60I (60W) | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 18V | 3.33A | 60 W | - | Positive Center | Medical | 88% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | Multi-Blade (Sold Separately) | - | 2.97 L x 1.54 W x 2.21 H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cURus, FCC, TUV |
|
GSM60E05-P1JAC/DC WALL MOUNT ADAPTER 5V 30W |
139 | - |
|
Datasheet |
Box | GSM60E (60W) | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 5V | 6A | 30 W | - | Positive Center | Medical | 80% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | KSC 8305 | - | 2.97 L x 1.26 W x 1.87 H (75.5mm x 32.0mm x 47.5mm) | CB, CE, EAC, TUV |
|
SGA60E18-P1JAC/DC WALL MOUNT ADAPTER 18V 60W |
160 | - |
|
Datasheet |
Box | SGA60E (60W) | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 3.33A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | CEE 7/16 | - | 3.68 L x 1.38 W x 2.03 H (93.5mm x 35.0mm x 51.5mm) | CB, CE, GS |
|
|
GEM60I09-P1JAC/DC WALL MOUNT ADAPTER 9V 50W |
135 | - |
|
Datasheet |
Box | GEM60I (60W) | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 9V | 5.5A | 50 W | - | Positive Center | Medical | 87% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | Multi-Blade (Sold Separately) | - | 2.97 L x 1.54 W x 2.21 H (75.5mm x 39.1mm x 56.2mm) | CB, CE, cURus, FCC, TUV |
|
GST160A48-R7BAC/DC DESKTOP ADAPTER 48V 160W |
205 | - |
|
Datasheet |
Box | GST160A (160W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 48V | 3.34A | 160 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 6.89 L x 2.83 W x 1.38 H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GSM120A24-R7BAC/DC DESKTOP ADAPTER 24V 120W |
171 | - |
|
Datasheet |
Box | GSM120A (120W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 5A | 120 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 6.57 L x 2.64 W x 1.38 H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV |
|
GST280A15-C6PAC/DC DESKTOP ADAPTER 15V 255W |
270 | - |
|
Datasheet |
Box | GST280A (280W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 17A | 255 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C14 | - | 8.66 L x 3.74 W x 1.81 H (220.0mm x 95.0mm x 46.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GSM06E18-P1JAC/DC WALL MOUNT ADAPTER 18V 6W |
172 | - |
|
Datasheet |
Box | GSM06E (6W) | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 18V | 330mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72 (1.83m) | CEE 7/16 | - | 2.60 L x 1.26 W x 1.67 H (66.0mm x 32.0mm x 42.5mm) | CE, TUV |
|
GS06E-8P1JAC/DC WALL MOUNT ADAPTER 48V 6W |
168 | - |
|
Datasheet |
Box | GS06E (6W) | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 125mA | 6 W | 75mW (Max) | Positive Center | - | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | CEE 7/16 | - | 2.60 L x 1.26 W x 1.67 H (66.0mm x 32.0mm x 42.5mm) | CE, GS |
|
GST18E09-P1JAC/DC WALL MOUNT ADAPTER 9V 18W |
141 | - |
|
Datasheet |
Box | GST18E (18W) | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 9V | 2A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2 (1.20m) | CEE 7/16 | - | 3.11 L x 2.13 W x 1.30 H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM |
|
GST25U12-P1MAC/DC WALL MOUNT ADAPTER 12V 25W |
343 | - |
|
Datasheet |
Box | GST25U (25W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 12V | 2.08A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | NEMA 1-15P | - | 3.11 L x 2.13 W x 1.30 H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC |
|
GST25E15-P1JAC/DC WALL MOUNT ADAPTER 15V 25W |
143 | - |
|
Datasheet |
Box | GST25E (25W) | Active | Europe | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 15V | 1.66A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9 (1.80m) | CEE 7/16 | - | 3.11 L x 2.13 W x 1.30 H (79.0mm x 54.0mm x 33.0mm) | CB, CE, cUL, EAC, GS, SIRIM |
|
SGA18U09-P1JAC/DC WALL MOUNT ADAPTER 9V 18W |
248 | - |
|
Datasheet |
Box | SGA18U (18W) | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 2A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4 (1.00m) | NEMA 1-15P | - | 2.97 L x 1.26 W x 1.87 H (75.5mm x 32.0mm x 47.5mm) | CB, cULus |
|
GSM160A24-R7BAC/DC DESKTOP ADAPTER 24V 160W |
2,716 | - |
|
Datasheet |
Box | GSM160A (160W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 6.67A | 160 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 6.89 L x 2.83 W x 1.38 H (175.0mm x 72.0mm x 35.0mm) | CB, CE, cURus, TUV |
|
|
GSM160A12-R7BAC/DC DESKTOP ADAPTER 12V 138W |
3,522 | - |
|
Datasheet |
Box | GSM160A (160W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 11.5A | 138 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2 (1.20m) | IEC 320-C14 | - | 6.89 L x 2.83 W x 1.38 H (175.0mm x 72.0mm x 35.0mm) | CB, CE, cURus, TUV |
|
GSM60B24-P1JAC/DC DESKTOP ADAPTER 24V 60W |
3,810 | - |
|
Datasheet |
Box | GSM60B (60W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 2.5A | 60 W | 100mW (Max) | Positive Center | Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59 (1.50m) | IEC 320-C8 | - | 4.92 L x 1.97 W x 1.24 H (125.0mm x 50.0mm x 31.5mm) | CB, CE, cRUus, TUV |
|

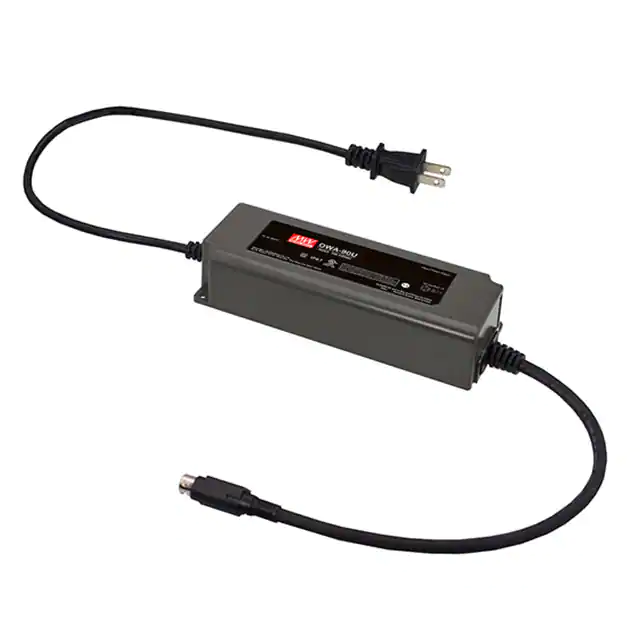

OWA-90U-24-P1MAC/DC DESKTOP ADAPTER 24V 90W |
2,617 | - |
|
Datasheet |
Box | OWA-90U (90W) | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -40°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 11.8 (300.00mm) | NEMA 1-15P | - | 6.73 L x 2.48 W x 1.48 H (171.0mm x 63.0mm x 37.5mm) | cULus, FCC, UL |
|
GST220A36-R7BAC/DC DESKTOP ADAPTER 36V 220W |
3,011 | - |
|
Datasheet |
Box | GST220A (220W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 36V | 6.1A | 220 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 39.4 (1.00m) | IEC 320-C14 | - | 8.27 L x 3.35 W x 1.81 H (210.0mm x 85.0mm x 46.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GST220A15-R7BAC/DC DESKTOP ADAPTER 15V 201W |
3,271 | - |
|
Datasheet |
Box | GST220A (220W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 13.4A | 201 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 39.4 (1.00m) | IEC 320-C14 | - | 8.27 L x 3.35 W x 1.81 H (210.0mm x 85.0mm x 46.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GSM06U06-P1JAC/DC WALL MOUNT ADAPTER 6V 6W |
2,485 | - |
|
Datasheet |
Box | GSM06U (6W) | Active | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 6V | 1A | 6 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 48 (1.22m) | NEMA 1-15P | - | 2.60 L x 1.26 W x 1.89 H (66.0mm x 32.0mm x 48.0mm) | cURus |
